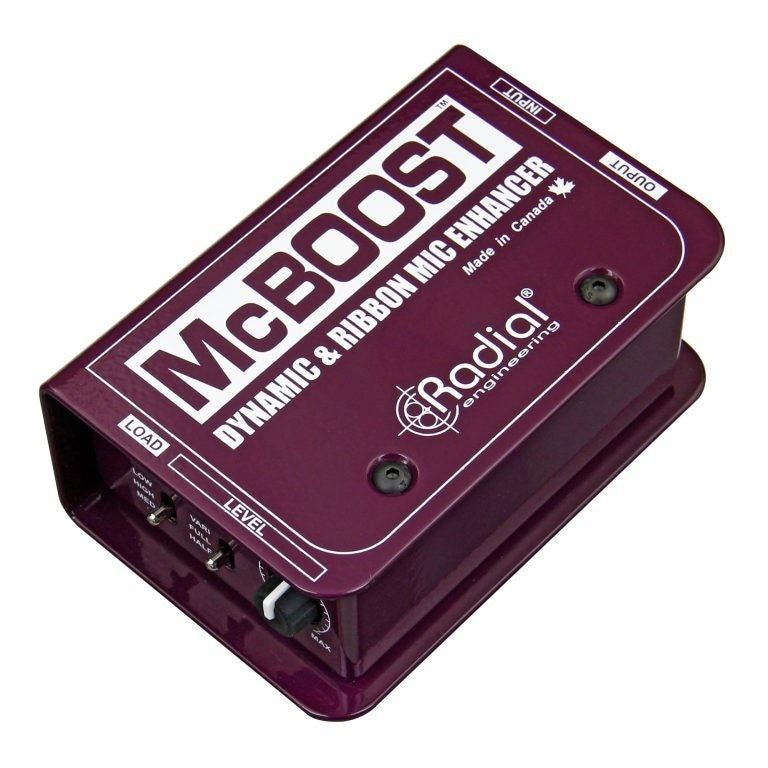

Radial - McBoost 25dB Mic R8008016

Currency:CAD Category:Music Start Price:20.00 CAD Estimated At:NA
Radial - McBoost 25dB Mic R8008016
CURRENT BID
22.50CADby E***l (7649)
ENTER YOUR MAXIMUM ABSENTEE BID[?]
You must bid at least
25.00CAD
CAD
25.00 x 1 unit = 25.00CADBuyer's Premiem and sales taxes is applicable on all purchases
[?]Bidding Ends At 2026 Jul 23 @ 15:24 (UTC-04:00 : AST/EDT)
Features
• Fully variable 25dB booster for dynamic and ribbon mics
• Extends dynamic range and microphone reach
• Uses standard 48V phantom for powering
• 3 position load switch and high-pass filter for greater
control
Benefits
• Boosts low output mic signals to a usable level
• Improves signal-to-noise on long cable runs
• Improves signal-to-noise with vintage audio gear
• High pass filter cleans up muddy low end
Cool stuff
• Will breathe new life into your old SM57
• Makes your dynamic think it is a condenser
• Does not require any power supply
• Works on dynamics and ribbon mics
Dimensions (W x L x H)
• 70 x 108 x 44mm (2.75” x 4.25” x 1.75”)
• Made in Canada, with pride!
• 3 Year transferable warranty

Specifications

Audio circuit type: Class-A Differential DC Coupled FET
Frequency response: & lt;7Hz to & gt;30kHz
Dynamic range: 116dB
Gain: +26dB Full Gain, +20dB Half Gain, +4dB to +25dB Variable Gain
Clip Level: +16dBu (output)
Total harmonic distortion: 0.006%
Intermodulation Distortion: 0.01%
Phase Deviation: & lt;10°
Input Impedance: 600Ω / 2.7kΩ / 30kΩ
Output Impedance: 220Ω
Common Mode Rejection Ratio: & gt;50dB
Equivalent Input Noise: -125dBu
Noise: -100dBu / -110dBu
Features
Input Connectors: XLR female output
Output Connectors: XLR male output
General
Construction: Cold Rolled Steel
Power: Phantom Power - 48V
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
